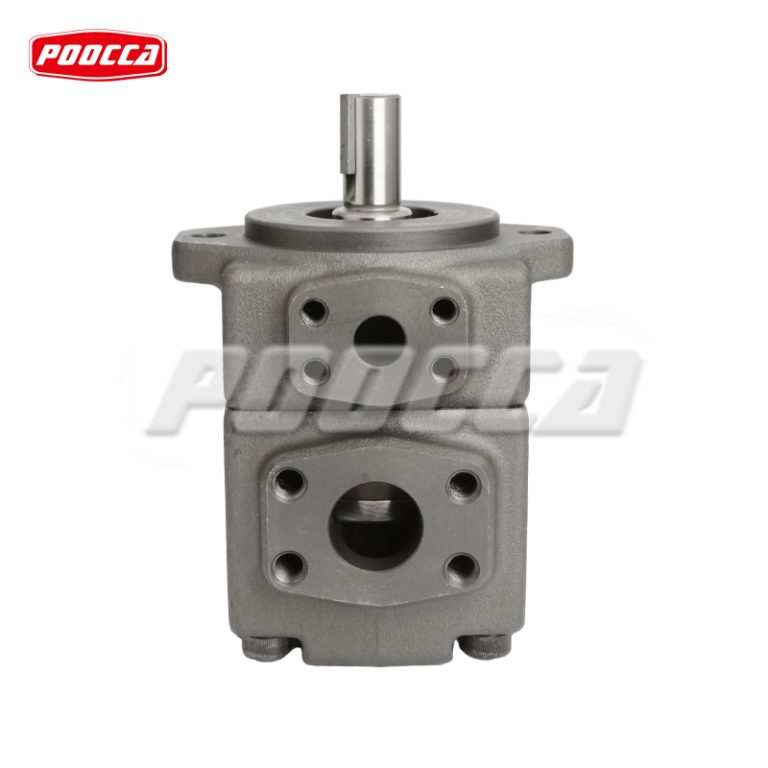

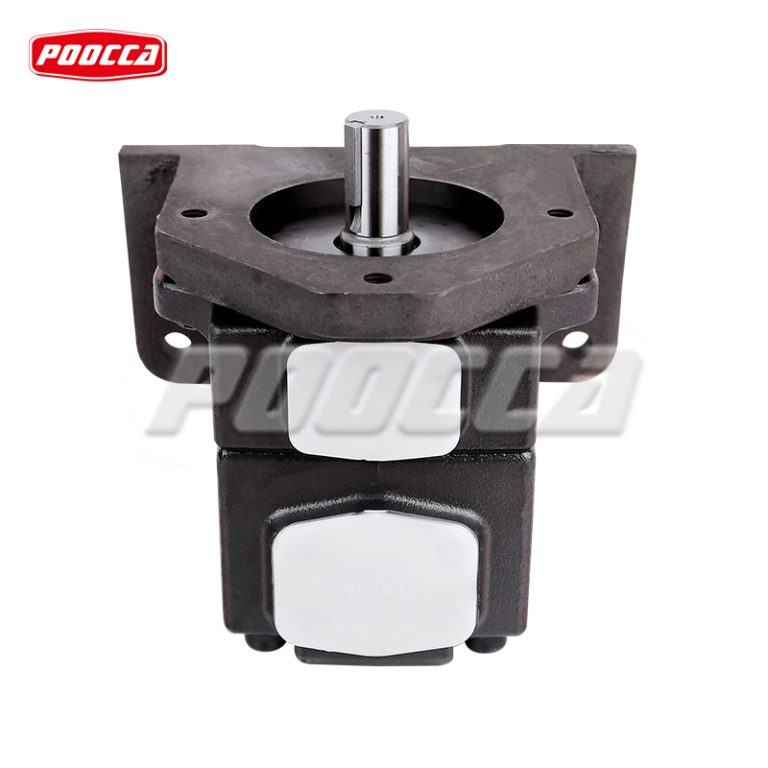

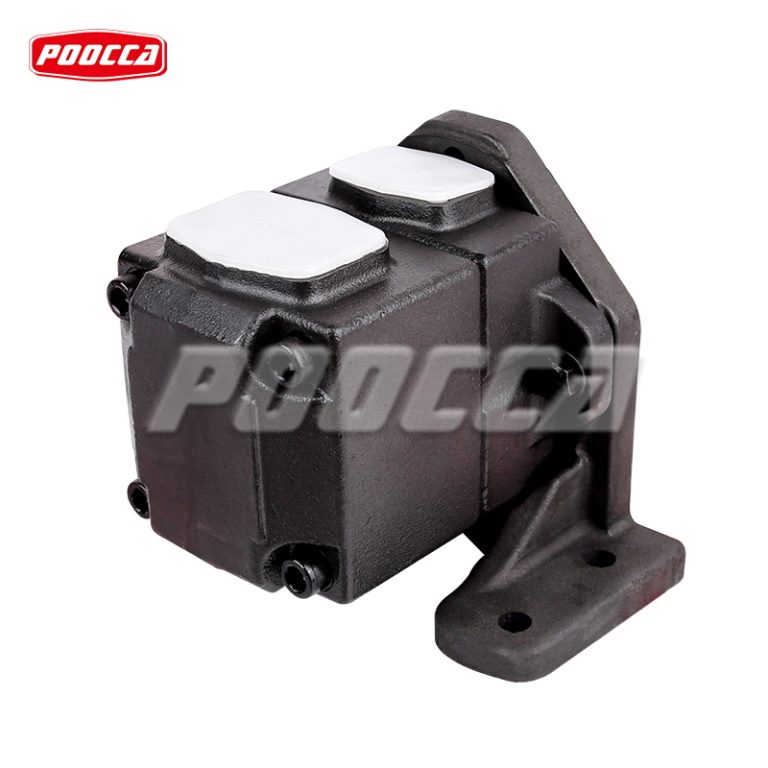

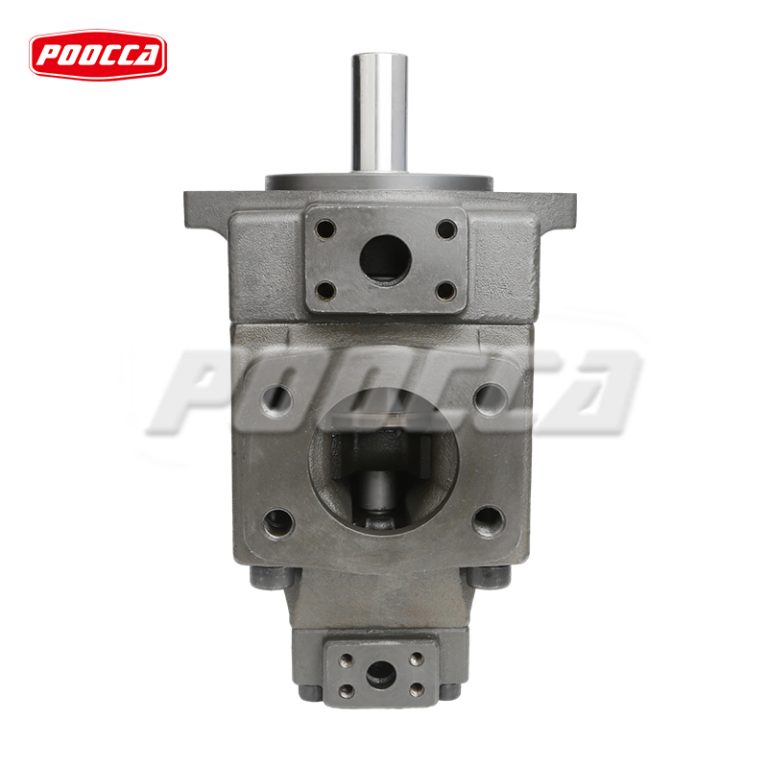

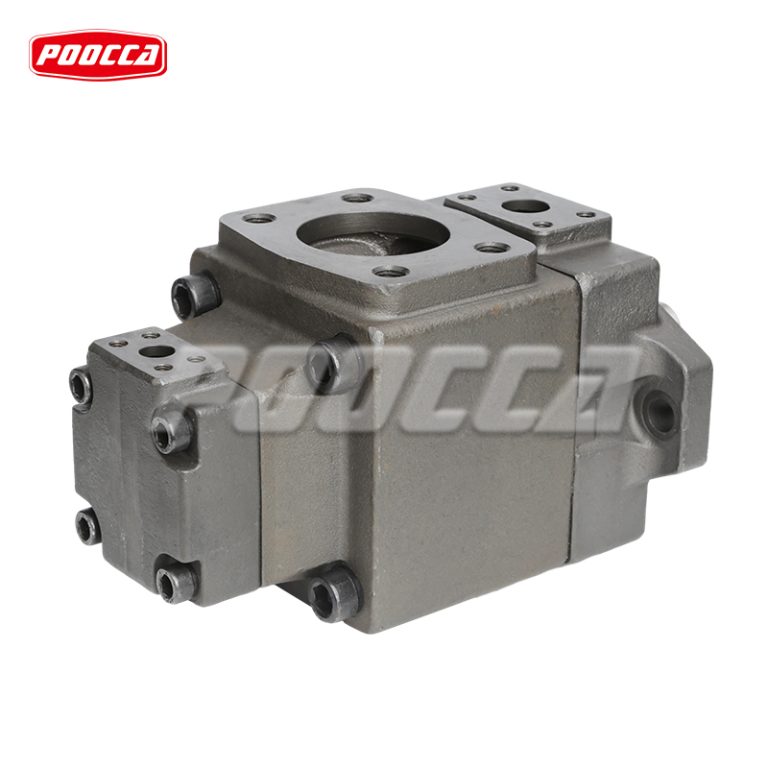

High pressure injection molding machine quantitative vane pump PV2R1-4, output flow range from 5.8 to 237 cm3/rev (rpm). 354 to 14.46 cu.in /rev).
High pressure injection molding machine quantitative vane pump PV2R1-4, output flow range from 5.8 to 237 cm3/rev (rpm). 354 to 14.46 cu.in /rev).
High pressure injection molding machine quantitative vane pump PV2R1-4, output flow range from 5.8 to 237 cm3/rev (rpm). 354 to 14.46 cu.in /rev).
The rated pressure of PV2R series vane pumps is 16MPa, which is suitable for the requirements of high-precision and low-noise equipment.It is widely used in cutting machinery, plastic machinery, leather machinery, forging machinery, construction machinery and other fields.In addition, PV2R vane pumps also have the following technical specifications：
Structure: The stator of the high-order equation curve, the side plate and the surface of the pressure plate are treated with manganese phosphate film, which reduces noise and increases wear resistance.
Application: It is especially suitable for indoor machinery with strict environmental noise control, such as plastic machinery, light industry machinery, casting and forging machinery, metal cutting machine tools, etc., and it is also suitable for construction machinery and other fields.
Maintenance and troubleshooting
In order to prevent the blade from breaking, the following measures can be taken：
The advanced transition curve is adopted to make the blade movement smooth and impact-free.
Regularly check the inlet and outlet filter devices and air filters with refueling filters in the hydraulic system to keep the cleanliness of the oil medium within Level 12 in NAS1638.
Through these measures, the service life of the PV2R vane pump can be effectively extended and the possibility of failure can be reduced.
