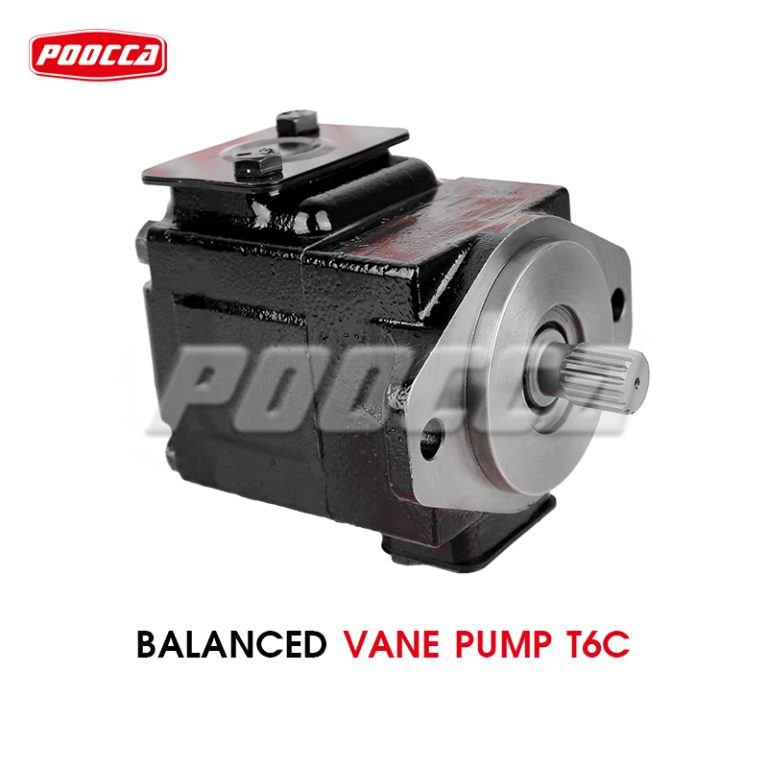

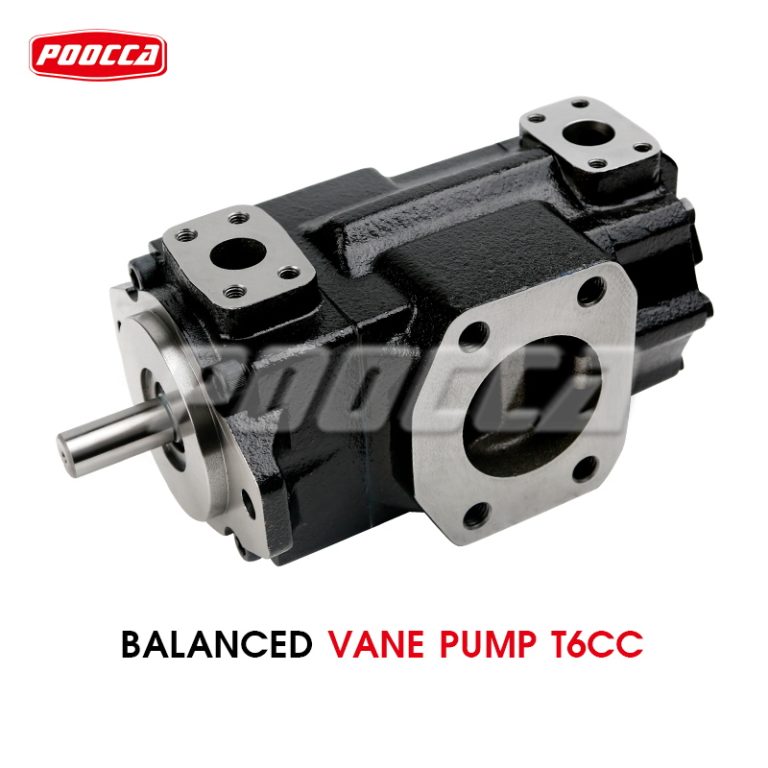

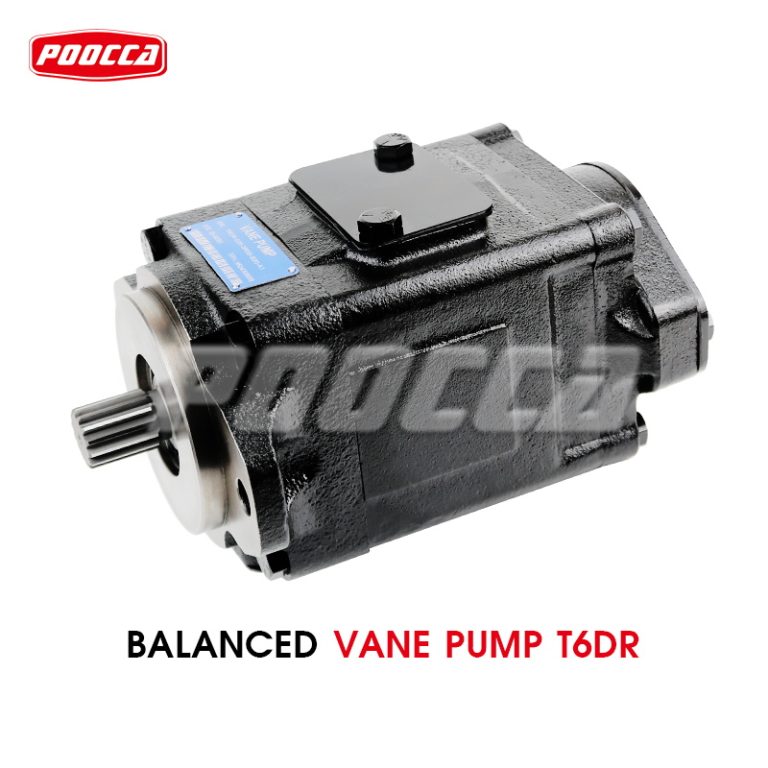

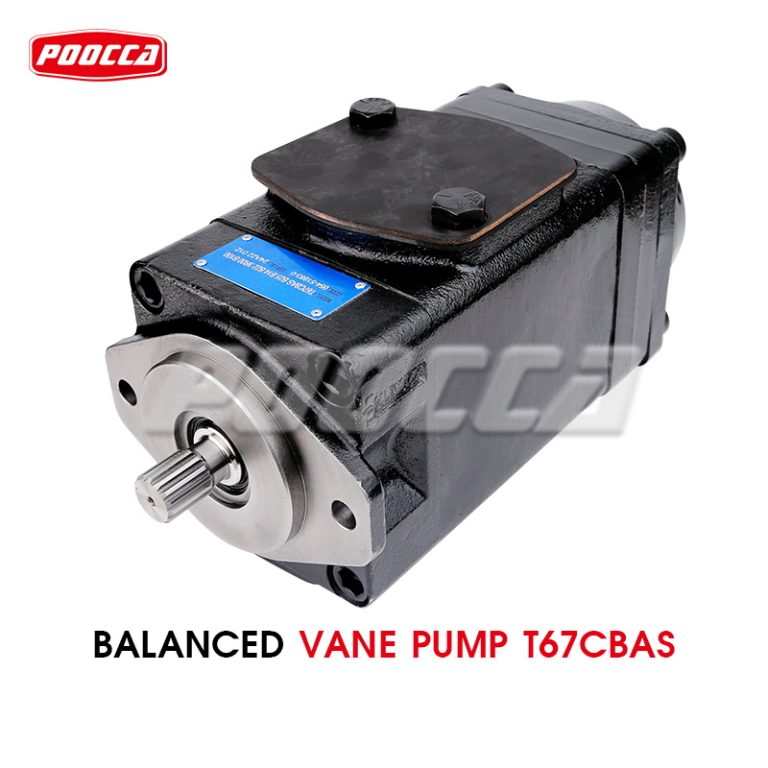

T6C T6D T7B T6DC T6E T6CC T6DR T67CBAS T7ED Quantitative single pump and double pump selection
These vane pumps have been specially designed for high/low circuit.
The combination of different cartridges in double and triple pumpsd allows low flow at high pressure (300 bar max.) and high flow at lower pressure.
This is a clever way to optimize your circuit design.
T6C T6D T7B T6DC T6E T6CC T6DR T67CBAS T7ED Quantitative single pump and double pump selection
These vane pumps have been specially designed for high/low circuit.
The combination of different cartridges in double and triple pumpsd allows low flow at high pressure (300 bar max.) and high flow at lower pressure.
This is a clever way to optimize your circuit design.
T6C T6D T7B T6DC T6E T6CC T6DR T67CBAS T7ED Quantitative single pump and double pump selection
These vane pumps have been specially designed for high/low circuit.
The combination of different cartridges in double and triple pumpsd allows low flow at high pressure (300 bar max.) and high flow at lower pressure.
This is a clever way to optimize your circuit design.
T-Group vane pump feature will also allow a very fast pressure cycle change with a very precise flow repeatability.
Characteristics and application of T6 vane pump
High mechanical efficiency: The typical mechanical efficiency of the T6 vane pump is 0.94, which reduces energy loss and improves overall efficiency.
Wide speed range: the speed range is 600~2800 rpm, which adapts to different work needs.
Low-speed and low-pressure operating capacity: The T6 vane pump can still operate normally at low-speed (600 rpm), low-pressure and high-viscosity (860 cSt) conditions. It is suitable for low-temperature conditions with low power consumption and no risk of stagnation.
Small pressure pulsation: the pressure pulsation is about ±2 bar, which reduces the noise of the hydraulic pipeline and extends the service life of other components in the hydraulic circuit.
High working pressure: the rated working pressure is as high as 275 bar, which reduces the size of the hydraulic actuator, hydraulic control valve and piping, and reduces installation costs.
High volumetric efficiency and low noise: it has a high volumetric efficiency even under loading conditions, reduces the operating cost of hydraulic equipment, and the noise level is low.
Strong anti-pollution ability: The blades with double-lip structure have strong anti-pollution ability and long service life.

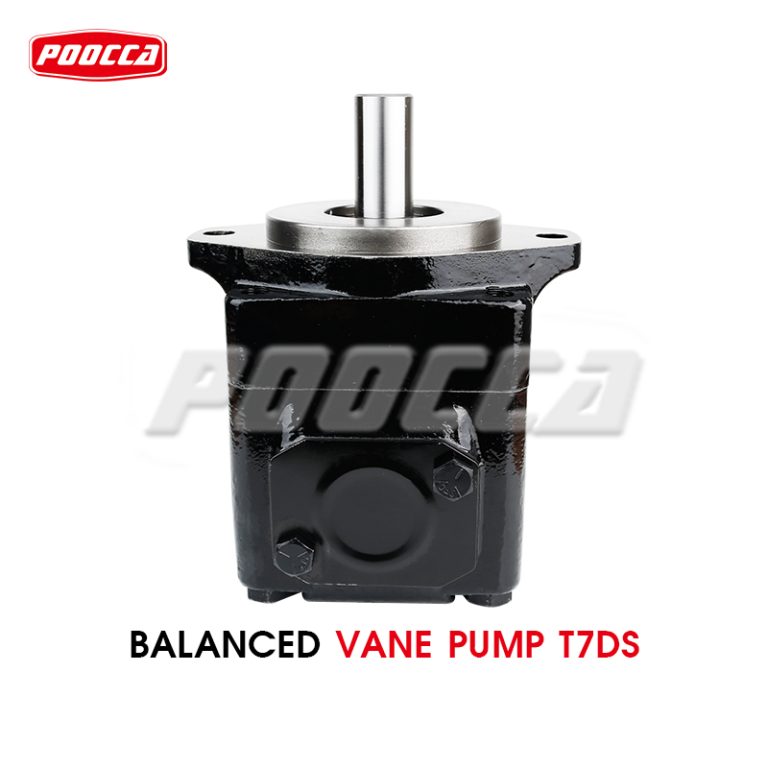

Characteristics and application of T7 vane pump
Reliable performance: The T7 hydraulic pump is designed for variable speed drive, with stable performance and suitable for modern electro-hydraulic operation machines.
Long life: The concept of pressure balance and double-lip blades increase the life of the pump, while improving the ability to resist solid particle pollution.
Low noise: Dension blade technology allows very low noise levels, maintaining low noise throughout the working range and throughout the life cycle.
Versatility and compactness: T7 series pumps have multiple displacement specifications with the same installation size to adapt to high power requirements.
Multiple control modes: support flow control, pressure/flow control and regeneration modes to adapt to different application needs.
Practical application scenarios
T6 and T7 vane pumps are widely used in various industries and machinery and equipment, such as walking machinery, hydraulic systems, construction machinery, etc.Their high efficiency and reliability make these pumps perform well in demanding working environments.
